CONNBOX CB8 (LEMO/XLR-3F DETACHABLE) Discontinued
Roll over image to zoom in
CONNBOX CB8 (LEMO/XLR-3F DETACHABLE) Discontinued

CONNBOX CB8 (LEMO/XLR-3F DETACHABLE) Discontinued

Save 30%
RYCOTE Article no: RY016908
Price:
$256.20 $366

Description

Connbox CB8 (LEMO/XLR-3F Detachable)

Product Code: 016908

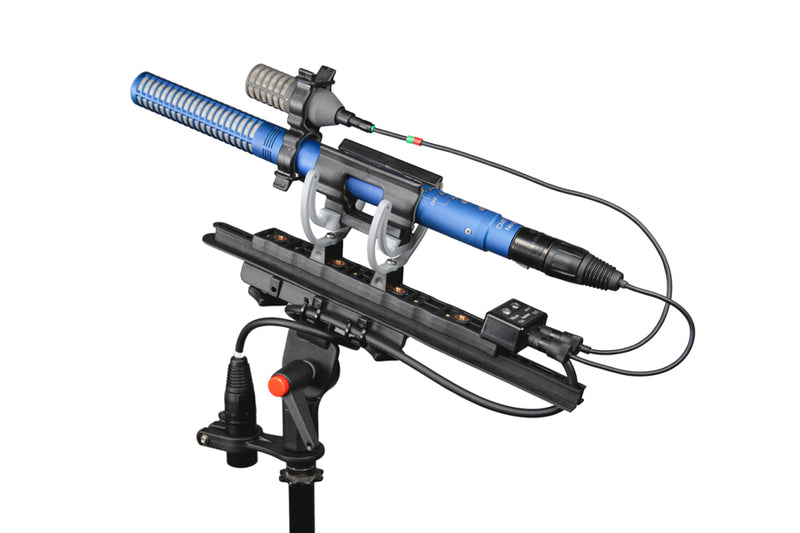

The Connbox has been designed to isolate and greatly reduce handling and cable-borne noise to the microphone. Connbox CB8 is suitable for Schoeps CMIT-5u + CCM M/S stereo pair.

Main Benefits:

  • Isolates and minimises handling and cable-borne noise
  • Greatly improves audio quality of recordings
  • A ready-to-use solution to connection problems
An effective and ready-to-use solution to connection problems, the Connbox will enable professional sound recorders to achieve clean, high quality audio recordings.

Acting as a transition connector and anchor point for the microphone tail, the lengths of cable are set to work perfectly with the microphone fitted in the windshield, without touching the internal surface of the basket. The soft cable then greatly reduces the transmission path of cable-borne noise, thus further reducing cable rumble.

The Connbox is made of the highest quality components, using a Gold 5-pin Neutrik X-series XLR connector, and an ultra soft Mogami star-quad cable.

Connbox 6 is suitable for a M/S stereo pair of Schoeps CCM in a mono extended ballgag with Lemo connectors

Tech Specs

INPUT
Input connector: 1 x XLR 3F, 1 x Lemo
Input Connbox Connector: 2 x TA-3M Binder
Input Cable outside diameter: 2.5mm
Input Cable Exposed Length: ch1 120mm, ch2 250mm
Input Cable Band Colour: ch1 plain, ch2 green & red

OUTPUT
Output Connector: XLR – 5M
Output Connbox Connector: Hardwired
Output Cable Outside Diameter: 4.8mm
Output Cable Exposed Length: 420mm
Input Cable Band Colour: white
