OM-08 Omnidirectional Pencil Condenser Microphone

Save 30%
RYCOTE Article no: RYC079005

Price:
$839.30 $1,199

Description

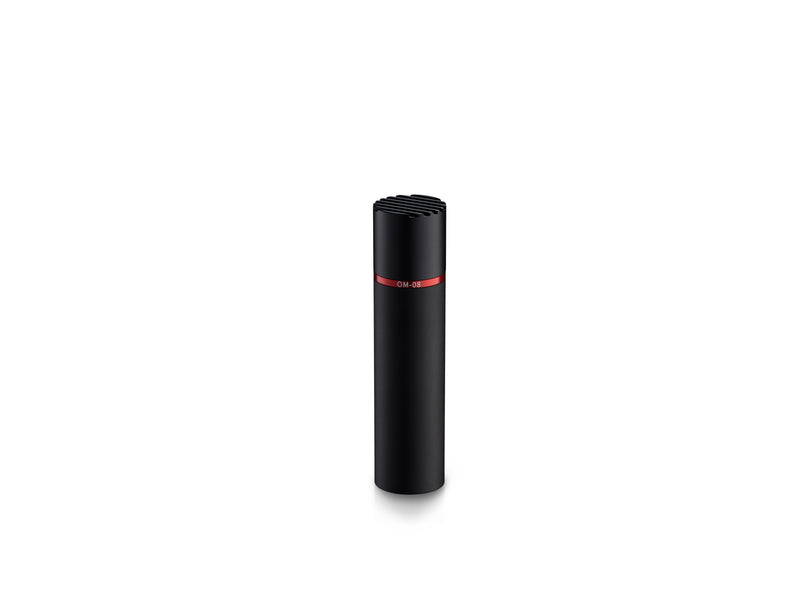

The Rycote OM-08 is an omnidirectional pencil condenser microphone designed for a range of applications in studio and field recording.

The OM-08 microphones provide solid low frequency response with virtually no drop off at 20Hz. The mics are built on Rycote’s low self-noise preamp design and capsules which offer a consistent sonic signature that mixes well when cut together with other Rycote microphones in the range. The OM-08 mics can be used individually or in matched stereo pairs.

FEATURES

Capsule:
• Professional broadcast quality and individually fine-tuned back electret capsule
• Excellent low frequency response

Preamp:
• Compact design
• Ultra low noise circuitry
• Sophisticated RF shielding
• Low power consumption

Connector:

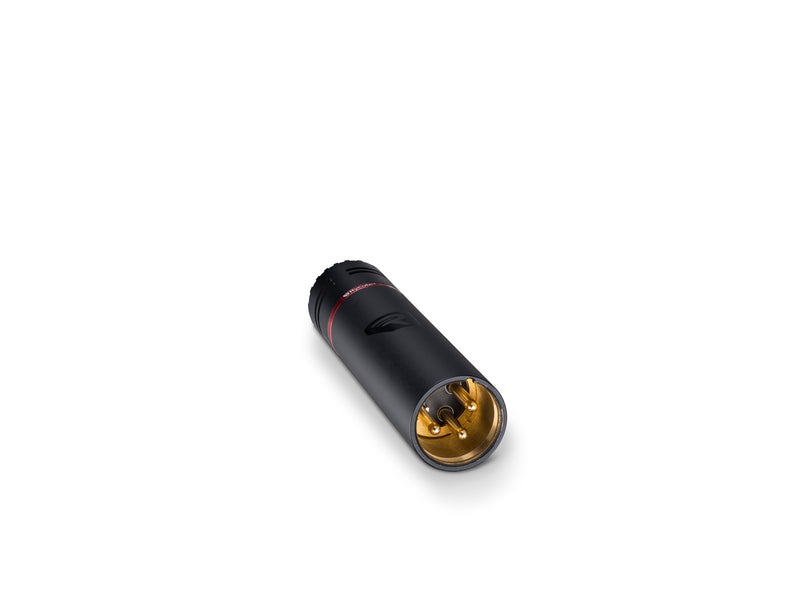

• Gold-plated Neutrik XLR connector

RF-Protection:
• Active in-line filtering
• Fine-tuned mechanical RF shielding
• Thoroughly tested against digital wireless systems and walkie talkies

Materials:
• Preamp made from non-corrosive machined brass - low impedance to ensure best possible and longest lasting RF shielding
• Capsule made from lightweight machined aluminium

Items included in delivery:
• 1 x OM-08 Microphone
• 1 x Microphone hard case

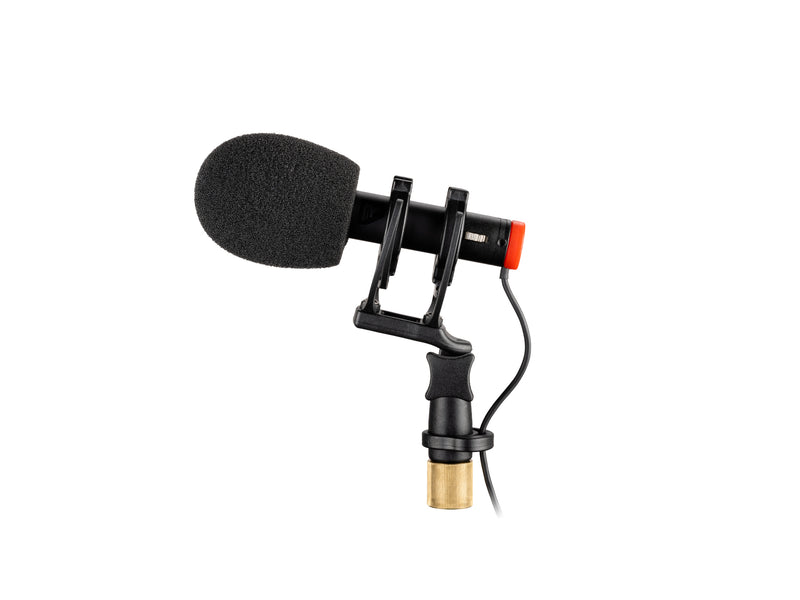

• 1 x Microphone clamp
• 1 x Microphone foam

PRODUCT CODE: RYC079005

SPECIFICATIONS:
Frequency Range: 10 Hz - 20 kHz
Self Noise: 11.0 dB-A (+/- 2 dB)
Polar Pattern: Omnidirectional
Capsule Type: Back Electret Condenser
Output Sensitivity: 23.0 mV/Pa (-32.7 dB)
Max. Output Voltage: 4 Vp
Output Impedence 100 Ω
Min. Load Impedance: 1 k Ω
Signal / Noise Ratio: 81 dB typical (@ 1 kHz/Pa A-weighted)
CMRR (@ 1 kHz): > 60 dB
Max. Cable Length: 100 m
Powering: P-48
Powering Valid Range: 48-24V (Max SPL reduced at 24V)
Current Consumption: 3.0 mA
Max. SPL: 133 dB SPL (at 1 kHz 1.0% THD Typical) 127 dB SPL (at 1 kHz 0.5% THD Typical)
RFI Shield: Yes
Connector: XLR-3M
Weight: 69 g
Colour: Matte Black

COMPATIBLE RYCOTE WINDSHIELDS
• 5cm SGM Foam
• 5cm Classic Softie
• 5cm Short Fur Softie
• 5cm Super Softie
• Nano Shield Kit NS1-BA
• Cyclone Windshield, Small
• Modular Windshield WS 10 Kit
• Baseball 19/20mm
